Shimano Alivio SL-M3100 3-/9-speed Shifter

The SL-M3100 Shifter from the Shimano Alivio Series for 3×9-Speed Shifters & Derailleurs

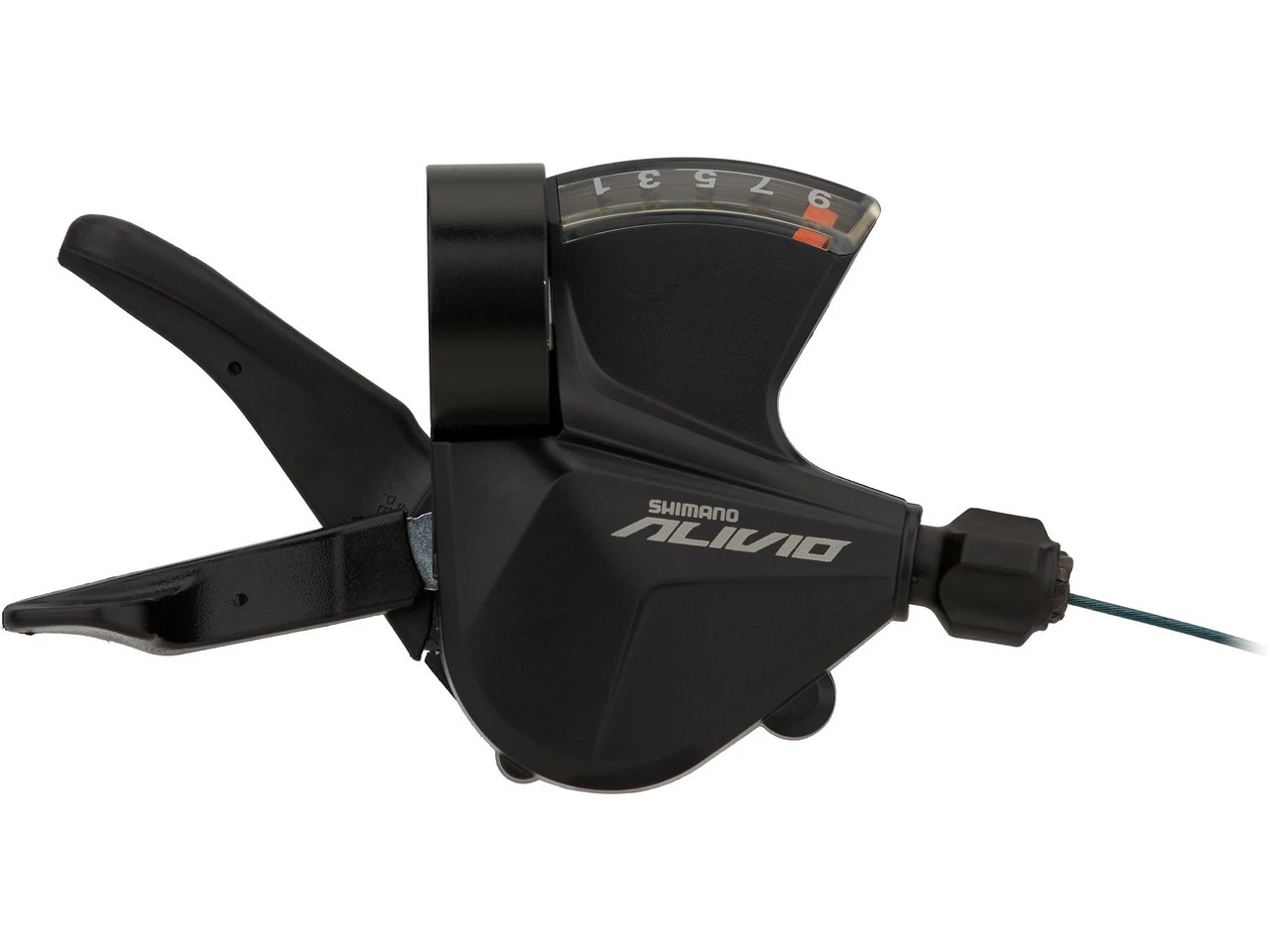

The Alivio SL-M3100 shifter by Shimano for mountain bikes with 3×9-speed drivetrains scores with good accessibility and easy operation. As a Rapidfire Plus model, it also impresses with its fast gear changes, with up to three steps being shifted at once at the rear. A visual gear indicator helps you find the right ratio. The shifter is attached to the left or right side of the handlebars by means of a clamp and has a shift cable adjuster. The housing is made of aluminium, the levers are made of a steel-synthetic resin mixture. An inner cable with friction-reducing coating is included.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Series:Alivio M3100Application:All Mountain, Cross CountryGearing:3-speed, 9-speedMount:clamp (closed)Technical Information:Type:Rapidfire PlusBody Material:AluminiumLever Material:Composite (resin), steelCable:steel (Optislick)Cable Housing:OT-SP41 (not included)Gear Indicator:yesAdjustment Options:cable adjustCompatibility:MTB 3×9-speed:
Front Derailleur:FD-M660-E, FD-M661-D, FD-T4000, FD-T3000, FD-M370, FD-M370, FD-M371, FD-M4000, FD-M3100-M, FD-M3000, FD-M2000Crank:FC-MT300, FC-MT210-3, FC-M590, FC-M591, FC-T4060, FC-M4060, FC-T4010, FC-T3010-8, FC-T3010, FC-M371, FC-MT101, FC-M351, FC-M4050, FC-MT300, FC-MT210-3, FC-MT101, FC-M4000, FC-M3000-8, FC-M3000, FC-M2000, FC-MT100Rear Derailleur:RD-M772-GS/-SGS, RD-M592-SGS, RD-M4000-SGS, RD-M3100-SGS, RD-M3000-SGS, RD-M2000-SGS, RD-M771-SGS, RD-M591-SGS, RD-T4000-SGS, RD-T3000-SGS, RD-M370-SGSCassette:CS-HG400-9, CS-HG300-9, CS-HG201-9, CS-HG200-9, CS-HG400-9, CS-HG300-9, CS-HG201-9, CS-HG200-9, CS-HG400-9Chain:CN-HG93, CN-HG53E-Bike:STEPS E6100, E6180, E5000, E5080 with mechanical rear derailleur (9-speed only)Handlebar Grip Outer Diameter:max. 36 mmClamp Diameter:22.2 mmFeatures:quick shift lever access and easy operation for more efficiency and controlvisual gear indicator for quick recognition of the gear positionmax. number of gears per shift: 3 (main lever, rear)Optislick cable with a minimal, uniform galvanic coating for more efficient cable routing and corrosion resistancepainted housingsteel clamp boltTechnology:Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.
Models:3-speed:
Mount:leftManufacturer Number:E-SLM3100LB
9-speed:
Mount:rightManufacturer Number:E-SLM3100RAContents:1 x Shimano Alivio SL-M3100 Shifter with Gear Indicator (left or right)1 x Shimano cable, 1800 mm or 2050 mm
