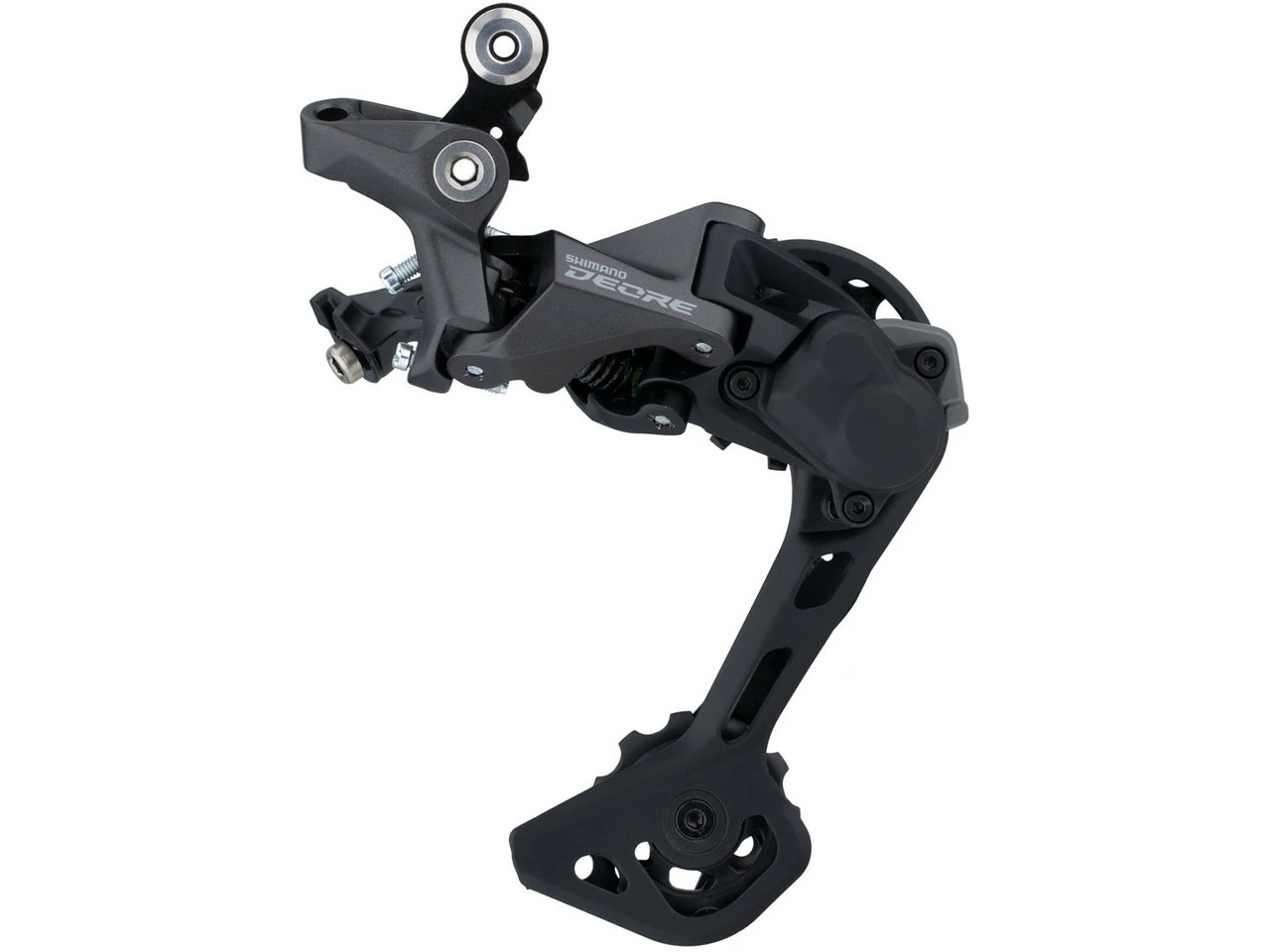

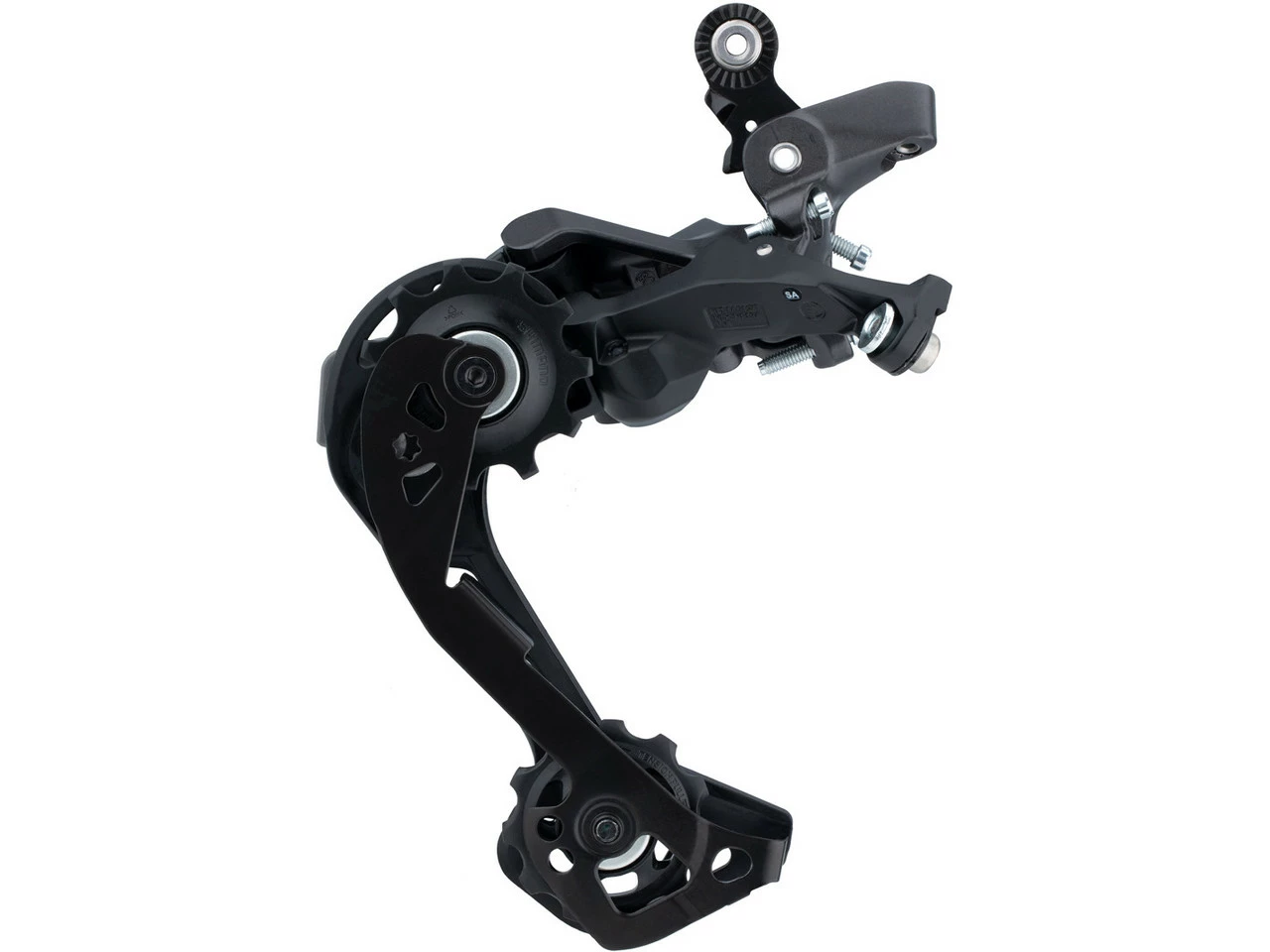

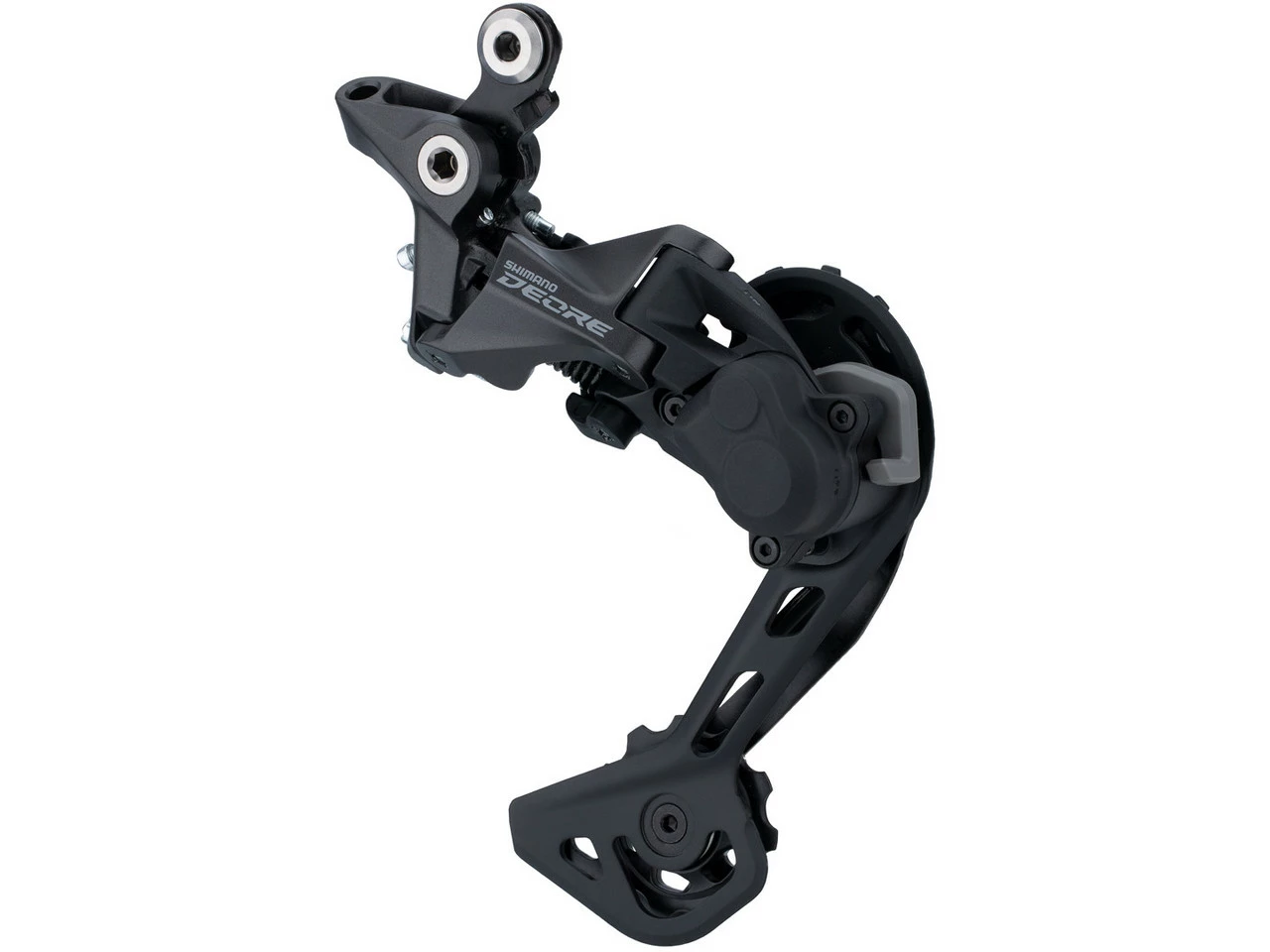

Shimano Deore RD-M5120 10/11-speed Shadow Plus Rear Derailleur

Shimano Deore rear derailleur RD-M5120 – can take 10-speed sprockets up to 46 teeth
The Shimano Deore RD-M5120 rear derailleur can be combined with 2×10-speed and 2×11-speed drivetrains as well as 1×10-speed drivetrains. It is designed for 42 tooth on the largest cassette sprocket when using a drivetrain with two chainrings, and can handle up to 46 teeth on the largest sprocket when using a 1x set-up. The rear derailleur features Shadow+ clutch technology, where a stabilizer counteracts chain sag, slap and drop. RD-M5120 is either mounted via a standard derailleur hanger or directly.
Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Specifications:Series:Deore M5100Application:All Mountain, Cross Country, TouringGearing:10-speed, 11-speedMount:standard (Direct Mount compatible)Capacity:41-toothCompatibility:Shimano MTB / Touring 10-speed, Shimano MTB 11-speedCompatibility – Chains:HG-X 10-speed, HG-X 11-speedTechnical Information:Derailleur Pulleys:11-toothOuter Cage Material:steelInner Cage Material:steelOther Materials:Aluminium, stainless steel, steel, synthetic resin (resin)Compatibility:MTB 2×11-speed:
Shifter:SL-M9000, SL-M8000, SL-M7000-11, SL-M5100Cassette:CS-M8000, CS-M7000-11, CS-M5100-11 (11-42 T only)Chain:CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500E-Bike:EP8 for MTB / Trekking
MTB 10-speed:
Shifter:SL-M7000-10, SL-M6000, SL-M4100, SL-M820, SL-M640, SL-M610Cassette:
1×10-speed: CS-M4100-10 (only 11-42, 11-46 T), CS-M5100-11 (only 11-42 T)2×10-speed: CS-M4100-10, CS-HG500-10 (only 11-42 T)Chain:CN-HG95, CN-HG54E-Bike:EP8 EP800 for MTB / TouringFeatures:low-noise drivetrain in all switching positionsreduced tension of rear derailleur and chain in low gearscompact profile limits damage from rocks and rootschain stabilizer (Shadow+) against chain drops, chain slaps and noisepainted cage plates4 pivot bushings, fluorine-coatedTechnology:Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano’s Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.
Models:long:
Cage Length:SGSMax. Largest Sprocket Teeth:42 teeth (2×10-speed, 2×11-speed), 46 teeth (1×10-speed)Min. Largest Sprocket Teeth:42-toothMax. Smallest Sprocket Teeth:11-toothMin. Smallest Sprocket Teeth:11-toothMax. Chainring Difference:10-toothTotal Capacity:41-toothManufacturer Number:E-RDM5120SGSContents:1 x Shimano Deore RD-M5120 Shadow+ rear derailleur
