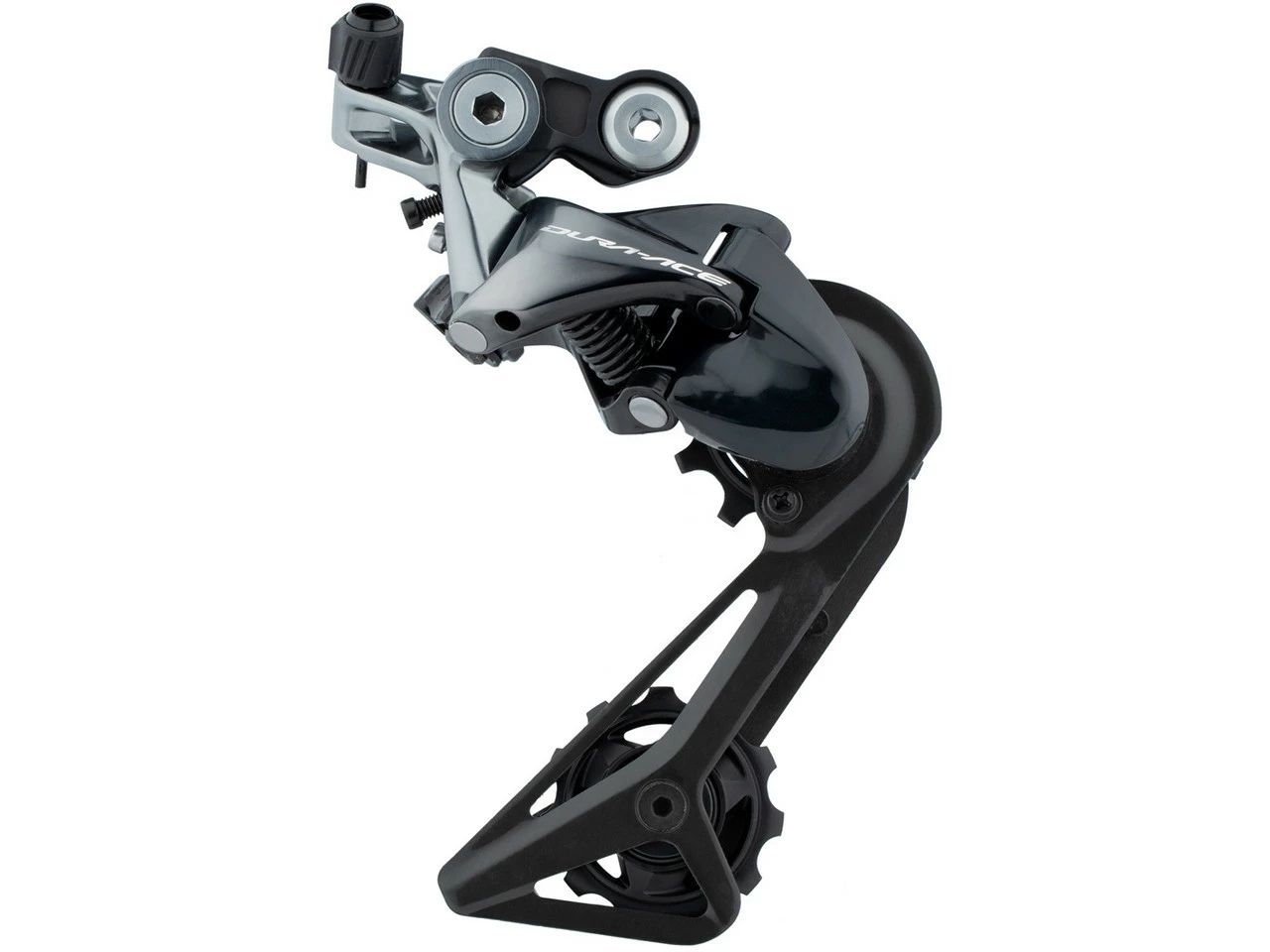

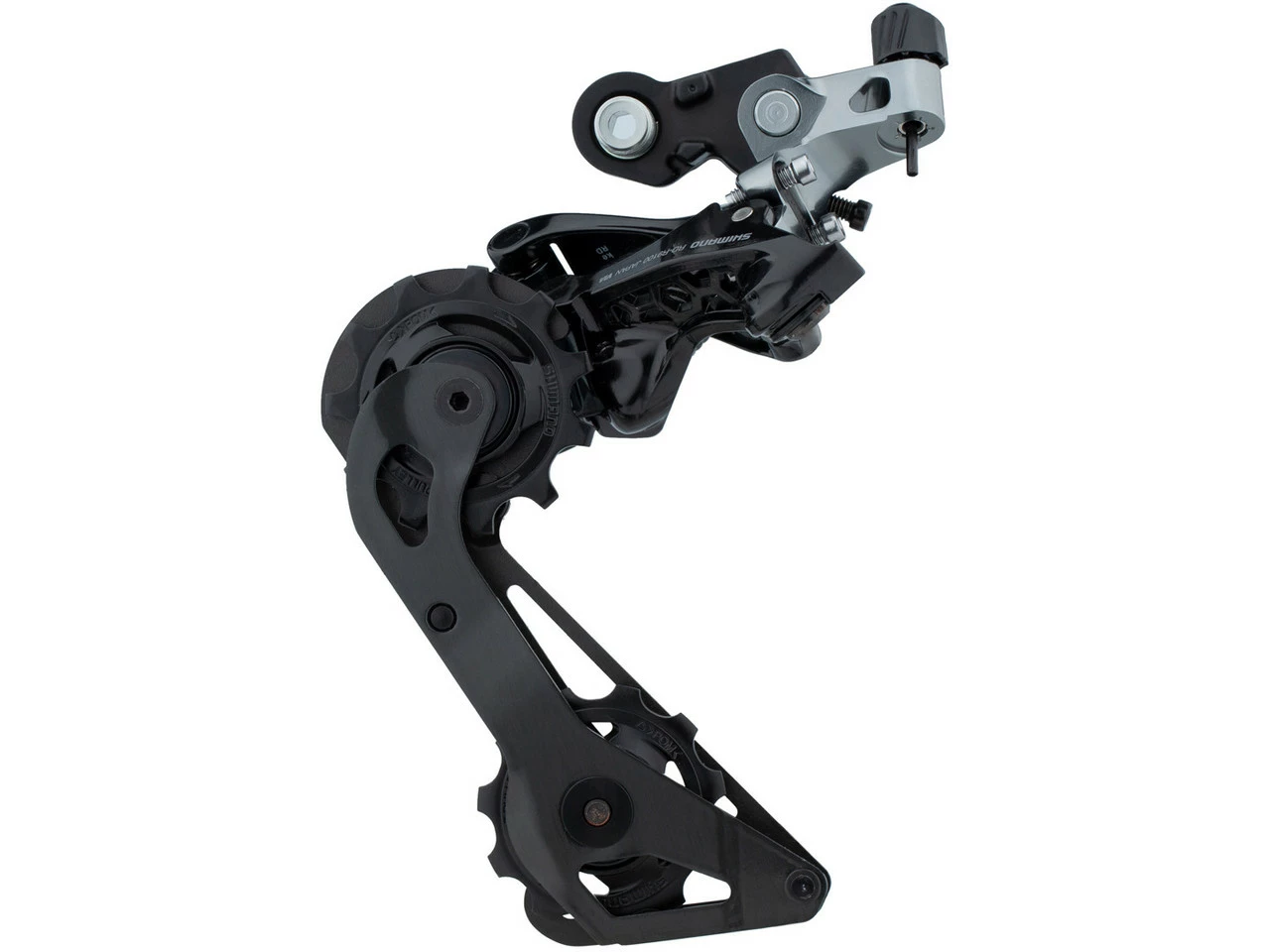

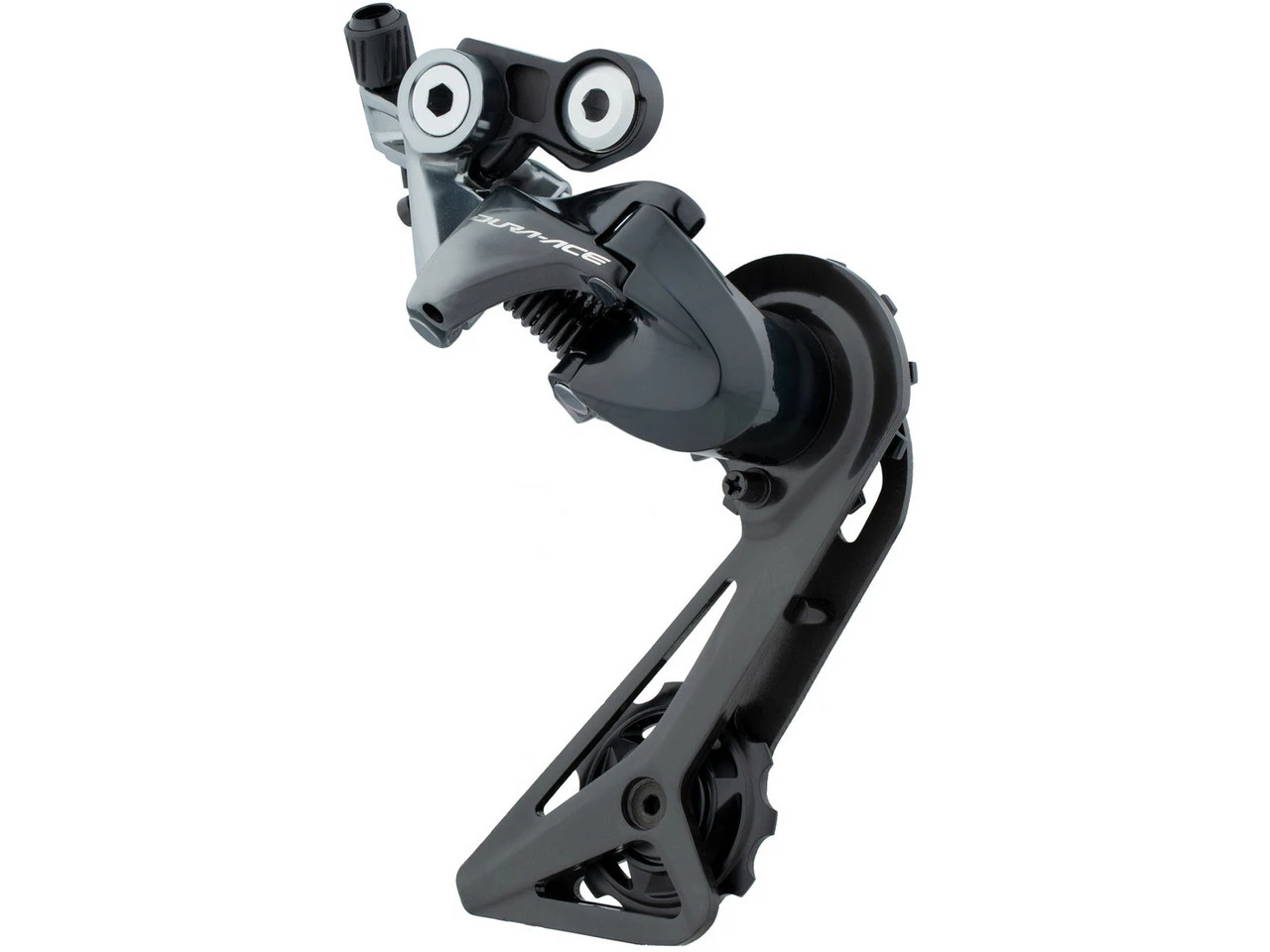

The Dura-Ace RD-R9100 rear derailleur by Shimano – mechanical shifting at the highest level
With the Dura-Ace RD-R9100 rear derailleur, Shimano introduces the Shadow RD technology, well known from the MTB sector, to the world of road bikes. Thanks to the particularly flat profile, damage is prevented and quiet, clean and safe operation is guaranteed on uneven surfaces. The new direct mount option accommodates frames with thru-axle dropouts. The super-light Dura-Ace rear derailleur is largely made of carbon. Its short cage (SS type) is compatible with 11-speed cassettes up to 11-30 teeth.
Specifications:Series:Dura-Ace R9100Application:Road, Triathlon & Time TrialGearing:11-speedMount:standard (Direct Mount compatible)Capacity:35-toothCompatibility:Shimano Road 11-speedCompatibility – Chains:HG-EV 11-speed, HG-X11Technical Information:Derailleur Pulleys:11-toothOuter Cage Material:carbon (CFRP)Inner Cage Material:carbon (CFRP)Other Materials:aluminium, carbon (CFRP), steelCompatibility:Shifter:ST-R9100, ST-R9120, ST-9001, ST-9000, SL-BSR1, ST-R8000, ST-R8020, ST-R8025, ST-6800, ST-R7000, ST-R7020, ST-R7025, ST-5800, SL-RS700, ST-RS685, ST-RS505, ST-U5060, SL-U5000, ST-RX810, ST-RX600Cassette:CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-R7000Chain:CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Features:consistent shiftspulley tracking at a defined distanceShimano Shadow RD typerear derailleur with flat profileadapted to race specific frame designcage plates clear coatedderailleur pulley bearings4 pivot bushings, fluorine-coatedTechnology:Shadow RD
Shadow rear derailleurs from Shimano have a very flat profile, allowing for a more aggressive riding style by minimising the risk of getting stuck on obstacles. In addition, the single preload ensures that the rear derailleur does not hit the chain stay even on very uneven ground. All of this contributes to a quiet, clean-operating gearshift.
OT-RS900
For Dura-Ace RD-R9100, Ultegra RD-R8000, 105 RD-R7000 and other 11-speed road or gravel rear derailleurs, Shimano has developed the special OT-RS900 cable housing. It is less stiff than the conventional OT-SP41 housing and is therefore better suited to the tight curve where the cable is routed from the frame to the rear derailleur. Thanks to OT-RS900, problems with the barrel adjuster can be prevented and the rear wheel can be removed more easily. OT-RS900 is not intended for use on the shift/brake lever side.
Models:short:
Cage Length:SSMax. Largest Sprocket Teeth:30-toothMin. Largest Sprocket Teeth:25-toothMax. Smallest Sprocket Teeth:14-toothMin. Smallest Sprocket Teeth:11-toothMax. Chainring Difference:16-toothTotal Capacity:35-toothManufacturer Number:I-RDR9100SSContents:1 x Shimano Dura-Ace RD-R9100 Rear Derailleur1 x Shimano OT-RS900 240 mm cable housing1 x long nose end cap
