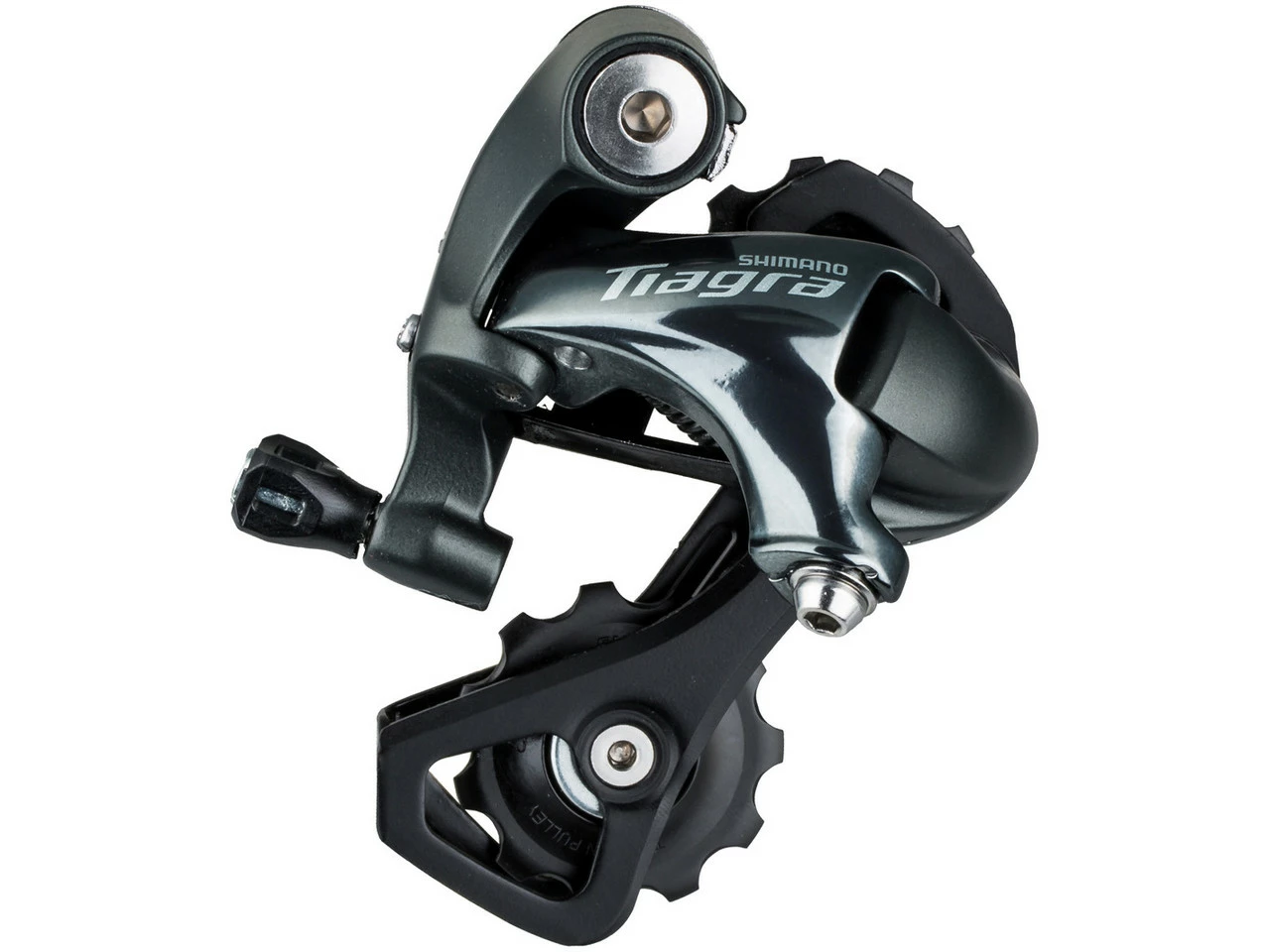

Shimano Tiagra RD-4700 10-speed Rear Derailleur

The Tiagra rear derailleur RD-4700 by Shimano – consistent, friction-free shifting performance
The Shimano Tiagra RD-4700 rear derailleur impresses with smooth and easy shifting processes as well as extended adjustment options. Compared to its predecessors, the spring mechanism and the tension grid have been improved once again. The short version is only compatible with 2×10-speed, the long version also with 3×10-speed drivetrains. The inner and outer cages of the rear derailleur are made of steel.
Specifications:Series:Tiagra 4700Application:Road, CityGearing:10-speedAttachment:standardCapacity:33 tooth (short), 41 tooth (long)Compatibility:Shimano Road 10-speedCompatibility – Chains:HG-XTechnical Information:Derailleur Pulleys:11-toothOuter Cage Material:steelInner Cage Material:steelOther Materials:aluminium, stainless steel, steelCompatibility:Shift/Brake Lever:ST-4700, ST-4720, ST-4725, ST-RS405, ST-RX400Shifter:SL-4700Cassette:CS-6700, CS-5700, CS-HG500-10, CS-4600, CS-M980, CS-M771-10, CS-HG81-10, CS-HG62-10, CS-HG50-10Chain:CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54Features:smooth and easy shiftingredesigned spring mechanism and optimised cable pullwider 10-speed ” Rider Tuned” gradationsprecise and durable shifting capacityrobust adjustabilityplated cage plates2 pivot bushings, fluorine-coatedModels:short:
Cage Length:SSMax. Largest Sprocket Teeth:28-toothMin. Largest Sprocket Teeth:25-toothMax. Smallest Sprocket Teeth:14-toothMin. Smallest Sprocket Teeth:11-toothMax. Chainring Difference:16-toothTotal Capacity:33-toothManufacturer Number:I-RD4700SS
long:
Cage Length:GSMax. Largest Sprocket Teeth:32 teeth (3x) or 34 teeth (2x)Min. Largest Sprocket Teeth:25 teeth (3x) or 28 teeth (2x)Max. Smallest Sprocket Teeth:12 teeth (3x and 2x)Min. Smallest Sprocket Teeth:14 teeth (3x) or 12 teeth (2x)Max. Chainring Difference:20 teeth (3x) or 16 teeth (2x)Total Capacity:41 teeth (3x and 2x)Manufacturer Number:I-RD4700GSContents:1 x Shimano Tiagra RD-4700 rear derailleur
