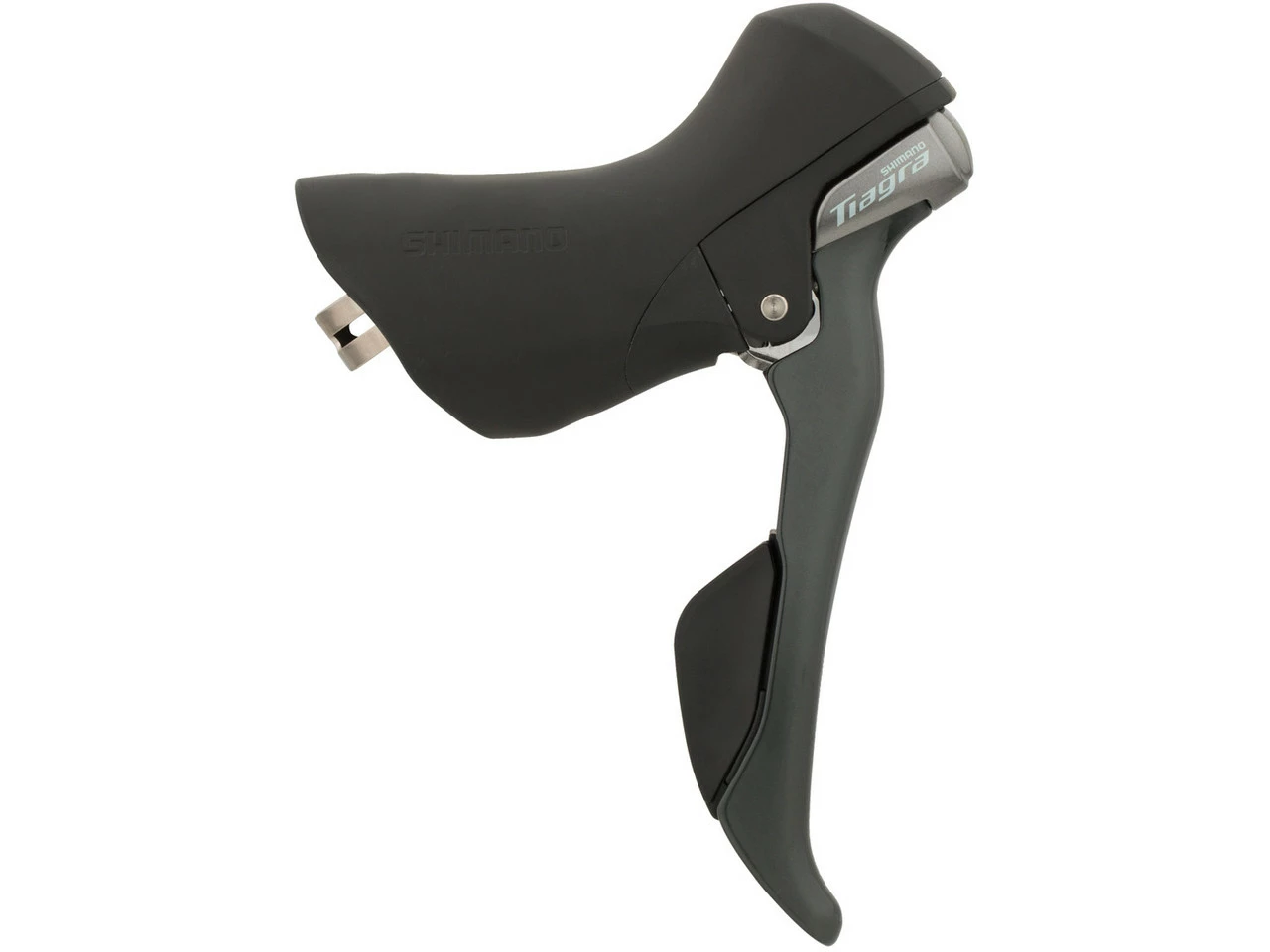

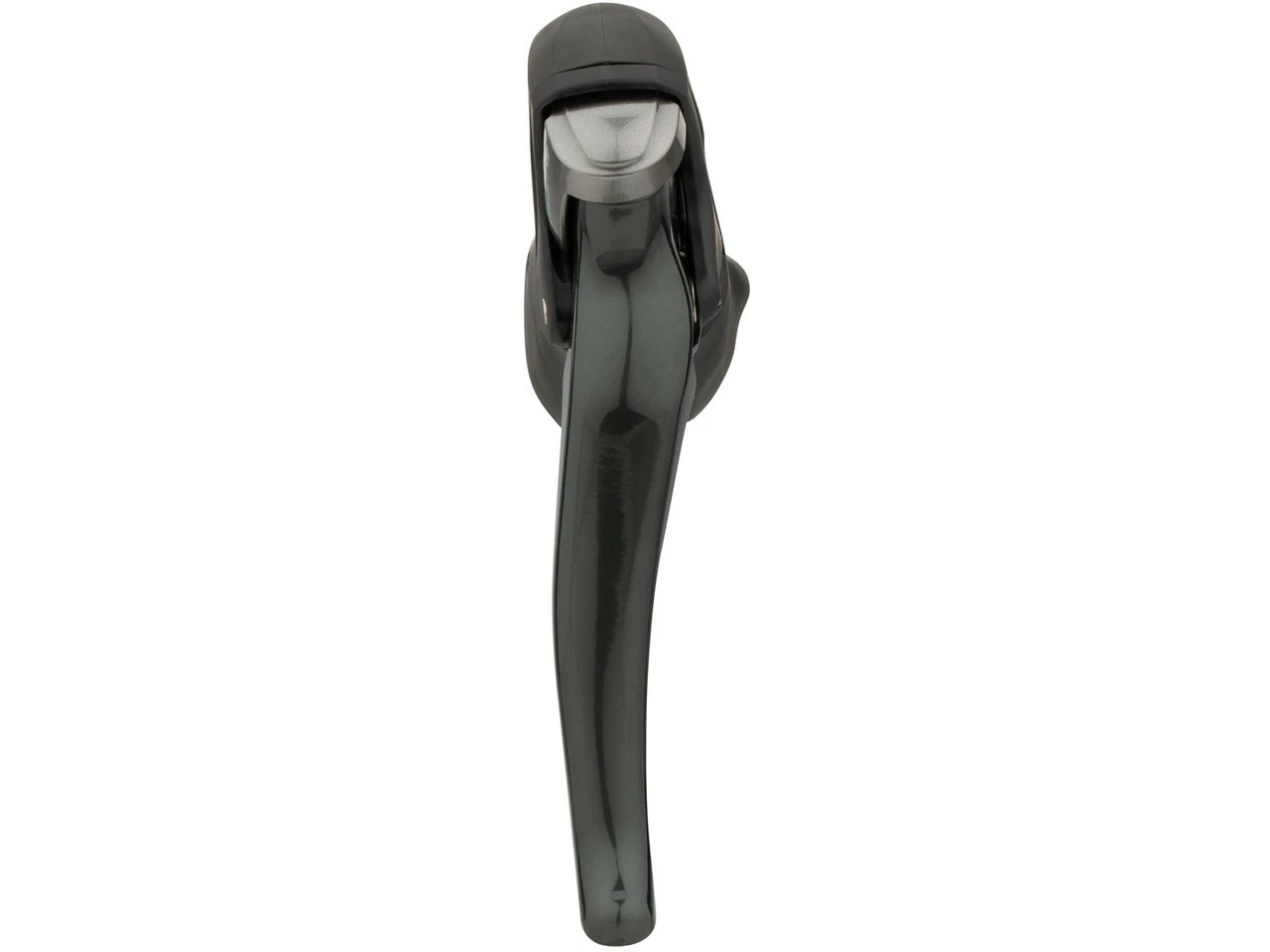

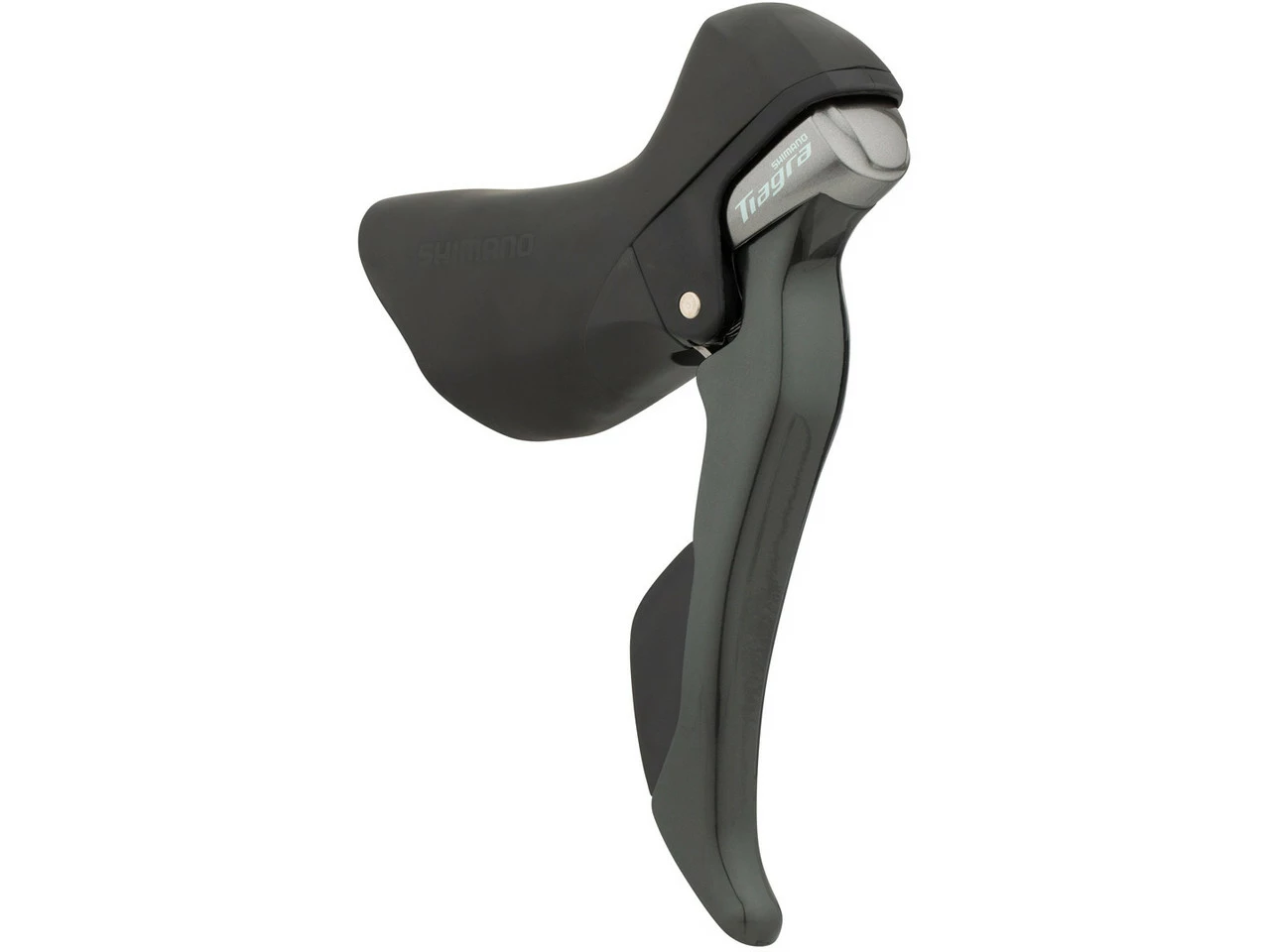

Shimano Tiagra STI ST-4700/4703 2-/3-/10-speed Shift/Brake Lever

Shimano Tiagra STI shift/brake lever ST-4700/4703 – smooth, reliable shifting
The Shimano Tiagra ST-4700 and ST-4703 shift/brake lever (2-speed or 3-speed, 10-speed) stands for effortless shifting and inspires with light yet powerful shifts. The ergonomics of the brake lever have been clearly improved compared to its predecessor, access has been improved and the handle has been made more compact. Thanks to internal cable routing, the cockpit can be kept neat and orderly. An Optislick shift cable is included.
Specifications:Series:Tiagra 4700Application:Road, CityGearing:2-speed, 3-speed, 10-speedShifting System:mechanicalBrake Type:mechanicalTechnical Information:Brake Lever Material:AluminiumLever Body Material:composite material (GFRP)Mount:clamp (closed)Reach Adjust:boltAdjustment Options:reach adjustCompatibility:Clamp Diameter:23.8 – 24.2 mmFront Derailleur:
2×10-speed: FD-47003×10-speed: FD-4703Crank:
2×10-speed: FC-4700, FC-R460, FC-RS4003x10-speed: FC-4703Rear Derailleur:RD-4700-SS, RD-4700-GS, RD-RX400Cassette:CS-6700, CS-5700, CS-HG500-10, CS-4600, CS-M980, CS-M771-10, CS-HG81-10, CS-HG62-10, CS-HG50-10Chain:CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54Brake Caliper:BR-R9200, BR-R9210, BR-R9100, BR-R9110, BR-9000, BR-9010, BR-7900, BR-R8100, BR-R8110, BR-RS811-R, BR-R8000, BR-R8010, BR-6800, BR-6810, BR-6700, BR-R7000, BR-R7010, BR-5800, BR-5810, BR-5710, BR-5700, BR-4700, BR-4600, BR-R3000, BR-3500, BR-R561, BR-R2000, BR-CX70, BR-CX50, BR-CX77, BR-R517, BR-R317, BR-RS305, BR-R650*, BR-R451*, BR-R450*, BR-R550*
* with reduced braking force
Features:effortless, precise shiftsVivid Index Shifting: smooth shifts, but still robustergonomic brake lever, easier access from the brake lever positionimproved ergonomics with slim and compact levercomfortable lever feel for different types of riderssmaller brake lever coversmooth surface with closed mechanismclean internal cable routing for a tidy cockpitrefined shift lever, revised triple systemOptislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistanceOT-SP41 cable housing recommendedpainted main leverTechnology:STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).
Models:2-speed:
Type:ST-4700-LMount:leftGearing:2-speedManufacturer Number:I-ST4700LI2
3-speed:
Type:ST-4703-LMount:leftGearing:3-speedManufacturer Number:I-ST4703LI2
10-speed:

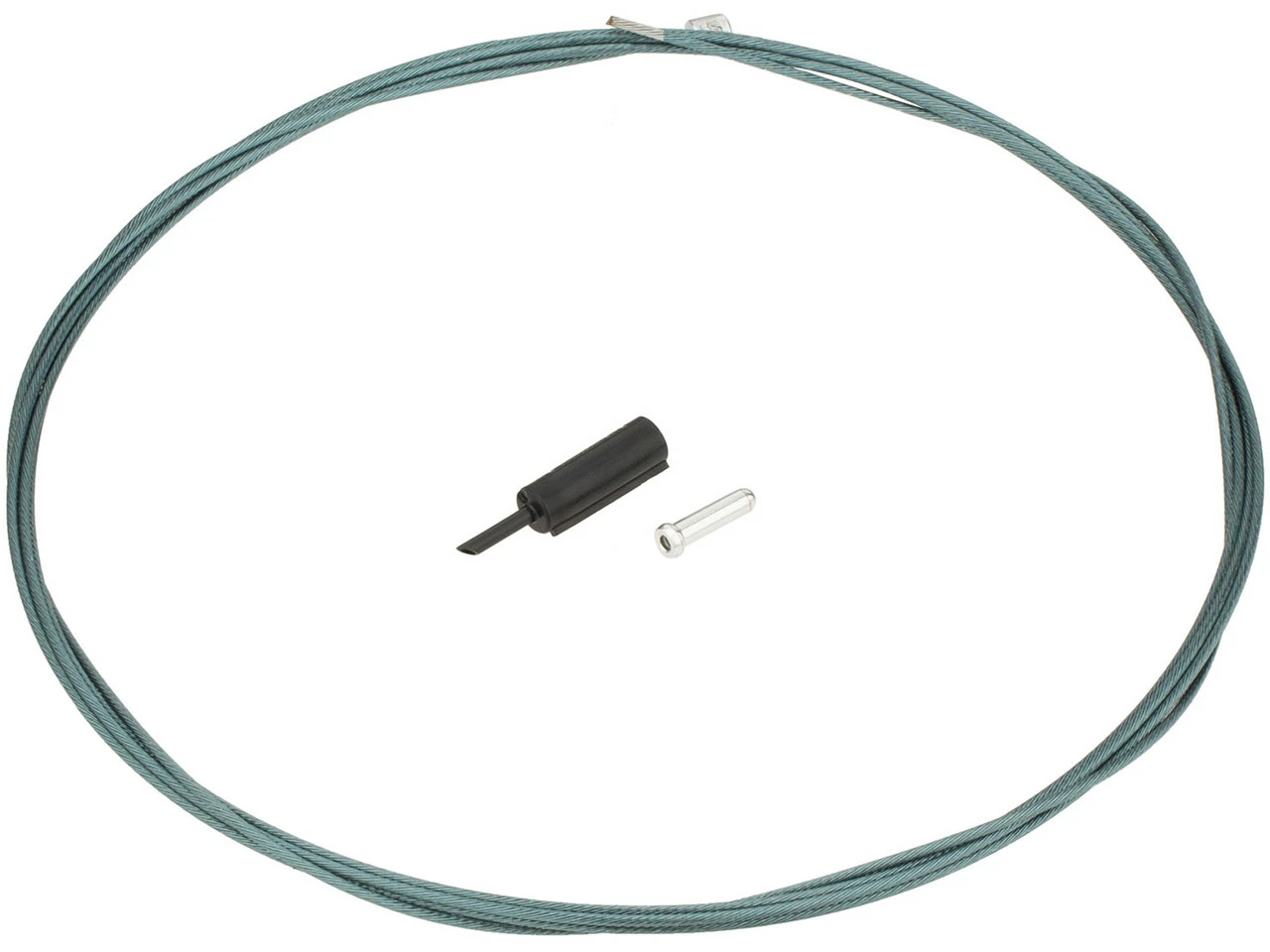

Type:ST-4700-RMount:rightGearing:10-speedManufacturer Number:I-ST4700RI2Contents:1 x Shimano Tiagra ST-4700 shift/brake lever or ST-47031 x Shimano cable, 2100 mm or 1800 mm
