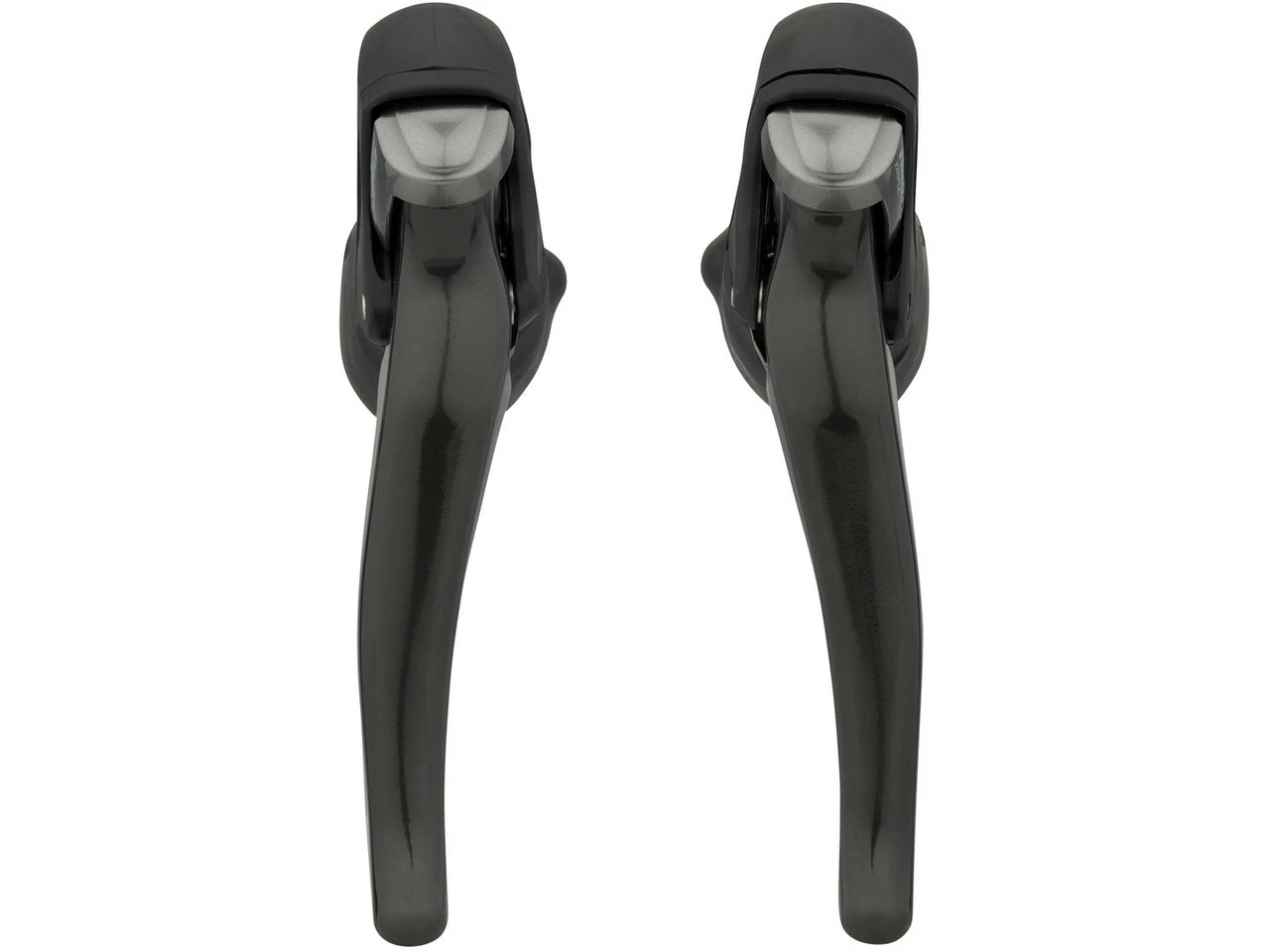

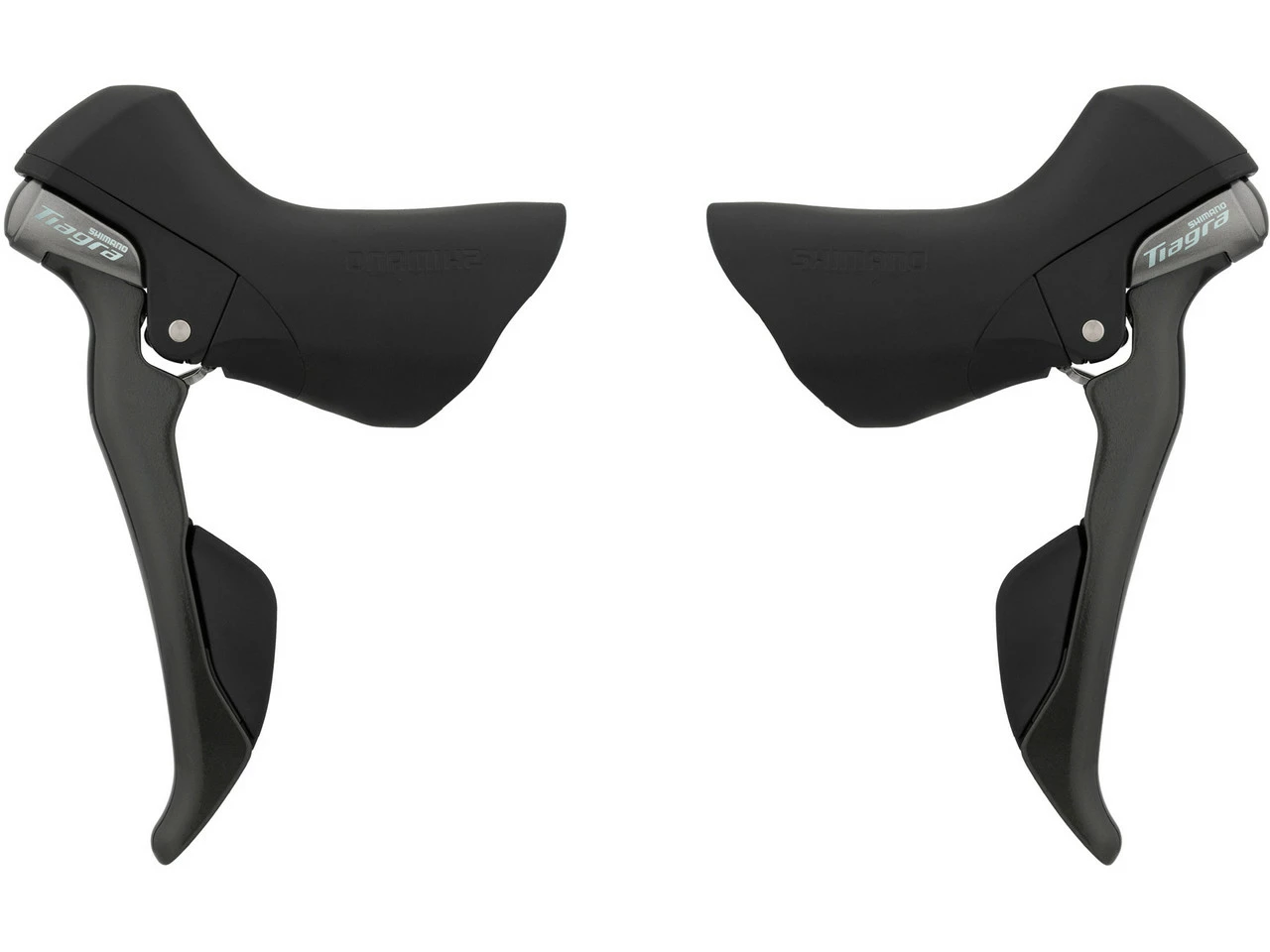

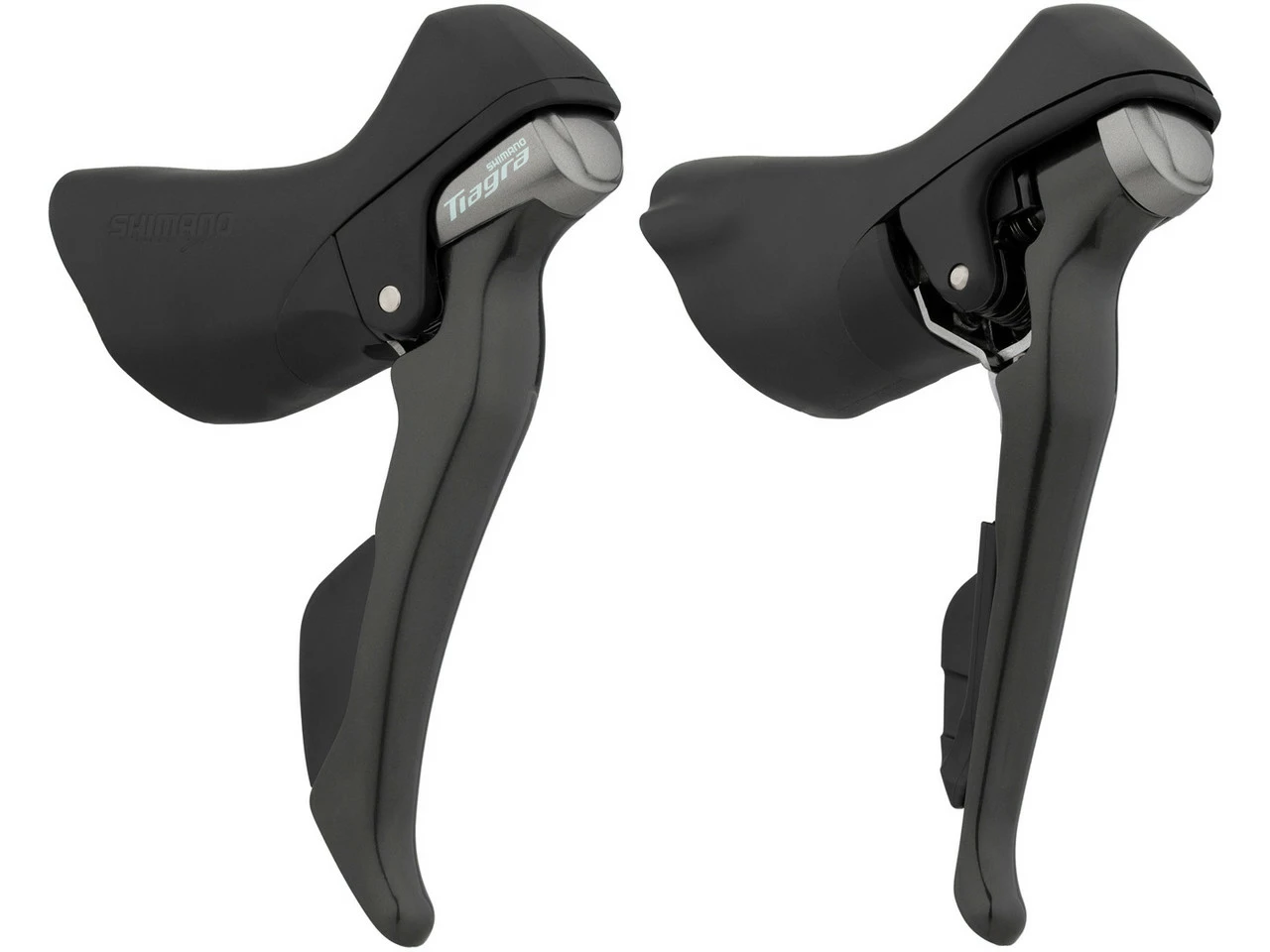

Shimano Tiagra STI ST-4700/4703 2-/3-/10-speed Shift/Brake Levers

The Shimano Tiagra ST-4700/4703 STI shift/brake lever set – crisp and effortless shifting
The Shimano Tiagra ST-4700 and ST-4703 shift/brake levers (2×10-speed or 3×10-speed) impress with smooth yet crisp shifting for effortless gear changes. Compared to the predecessor, they have been designed more ergonomically and offer a comfortable lever feeling, which is further supported by the slim grip. With internal cable routing, they contribute to a neat and orderly cockpit. Optislick shift cables and OT-SP41 outer sleeves are supplied.
Specifications:Series:Tiagra 4700Application:Road, CityGearing:2-speed, 3-speed, 10-speedShifting System:mechanicalBrake Type:mechanicalTechnical Information:Brake Lever Material:AluminiumLever Body Material:composite material (GFRP)Mount:clamp (closed)Reach Adjust:boltAdjustment Options:reach adjustCompatibility:Clamp Diameter:23.8 – 24.2 mmFront Derailleur:
2×10-speed: FD-47003×10-speed: FD-4703Crank:
2×10-speed: FC-4700, FC-R460, FC-RS4003x10-speed: FC-4703Rear Derailleur:RD-4700-SS, RD-4700-GS, RD-RX400Cassette:CS-6700, CS-5700, CS-HG500-10, CS-4600, CS-M980, CS-M771-10, CS-HG81-10, CS-HG62-10, CS-HG50-10Chain:CN-M981, CN-M980, CN-HG95, CN-HG94, CN-HG75, CN-HG74, CN-HG54Brake Caliper:BR-R9200, BR-R9210, BR-R9100, BR-R9110, BR-9000, BR-9010, BR-7900, BR-R8100, BR-R8110, BR-RS811-R, BR-R8000, BR-R8010, BR-6800, BR-6810, BR-6700, BR-R7000, BR-R7010, BR-5800, BR-5810, BR-5710, BR-5700, BR-4700, BR-4600, BR-R3000, BR-3500, BR-R561, BR-R2000, BR-CX70, BR-CX50, BR-CX77, BR-R517, BR-R317, BR-RS305, BR-R650*, BR-R451*, BR-R450*, BR-R550*
* with reduced braking force
Features:effortless, precise shiftsVivid Index Shifting: smooth shifts, but still robustergonomic brake lever, easier access from the brake lever positionimproved ergonomics with slim and compact levercomfortable lever feel for different types of riderssmaller brake lever coversmooth surface with closed mechanismclean internal cable routing for a tidy cockpitrefined shift lever, revised triple systemOptislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistanceOT-SP41 cable housing on lever side, OT-SP41 sealed to rear derailleurpainted main leverTechnology:STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).
Models:2×10-speed:
Type:ST-4700Gearing:2-speed, 10-speedManufacturer Number:I-ST4700PAC2
3×10-speed:

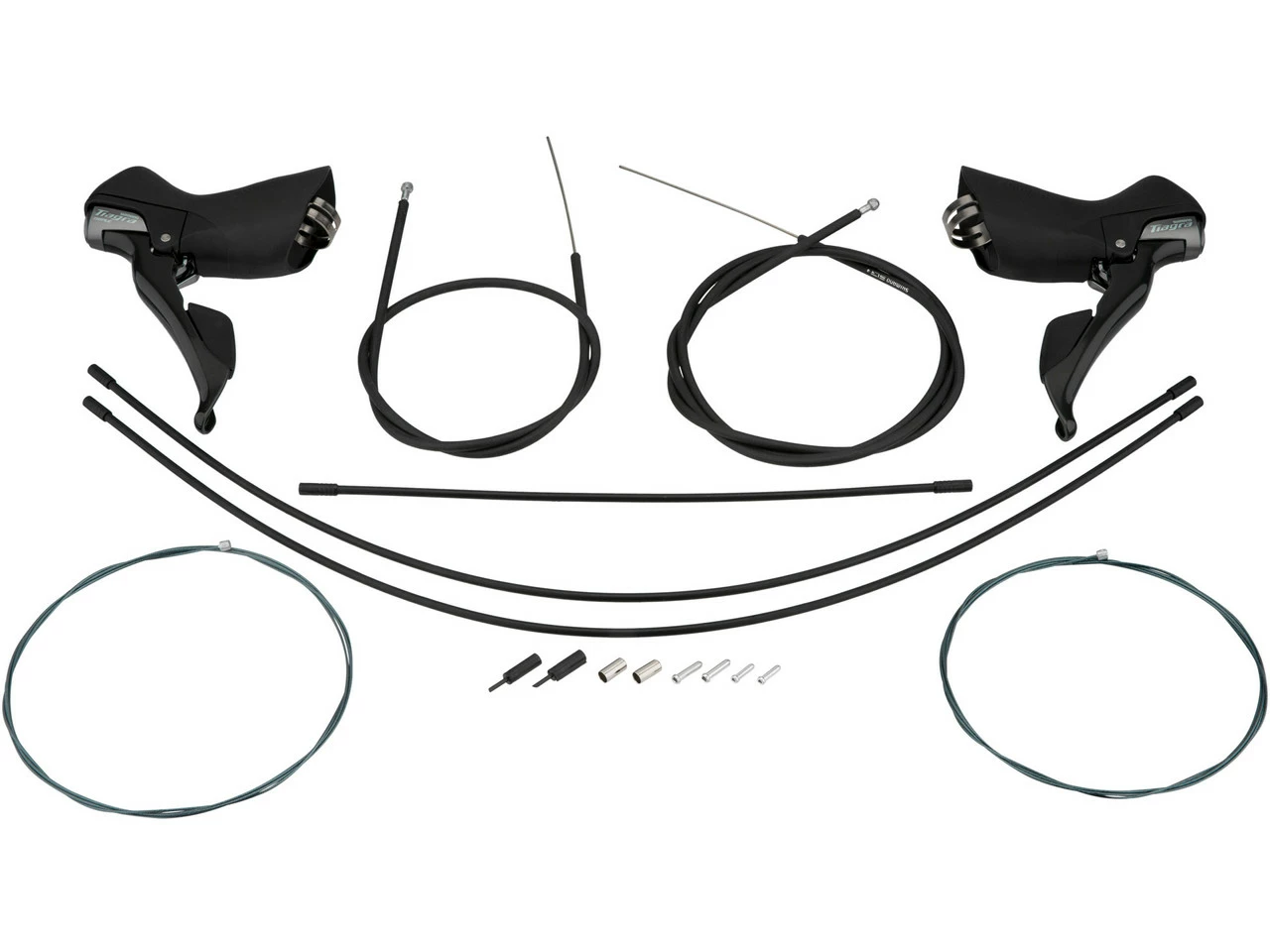

Type:ST-4703Gearing:3-speed, 10-speedManufacturer Number:I-ST4703PAC2Contents:1 x pair Shimano Tiagra ST-4700 shift/brake levers or ST-47031 x Shimano cable, 2100 mm1 x Shimano cable, 1800 mm2 x brake cables3 x shifter cable housings2 x brake cable housings
