Shimano Ultegra Di2 STI ST-R8060 2-/11-/12-speed Shift/Brake Lever

The Ultegra Di2 ST-R8060 Shift/Brake Lever by Shimano – More aerodynamic design
The Shimano Ultegra Di2 ST-R8060 STI shift/brake lever allows you to electronically upshift and downshift (2-speed or 11-/12-speed) and operate an SLR-EV rim brake on a time trial bike from an aerodynamic position. Unlike the predecessor ST-6871, the gearbox has been omitted, which makes the design even more streamlined. The ST-R8060 Dual Control lever scores with intuitive, fast shifting, adjustable grip width, numerous customisation options via the E-Tube platform and a side button (only to be used with Synchro-Shift). It can be mounted in handlebar ends with a diameter of 19 to 22.5 mm.
Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here.
Specifications:Series:Ultegra Di2 R8050Application:Triathlon & Time TrialGearing:2-speed, 11-/12-speedShifting System:electronicBrake Type:mechanicalTechnical Information:Brake Lever Material:aluminiumLever Body Material:composite material (GFRP)Mount:bar endsHandlebar Inner Diameter:19.0 – 22.5 mmReach Adjust:boltAdjustment Options:Reach AdjustCompatibility:Outer Handlebar Diameter:22.2 – 24.0 mmPower Cable:EW-SD50 (1 x connection)Front Derailleur:
2×11-speed: FD-R9150, FD-R8050, FD-9070, FD-6870, FD-RX8152x12-speed: FD-R9250**, FD-R8150**, FD-R7150**Crank:
2×11-speed: FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-112×12-speed: FC-R9200, FC-R9200-P, FC-R8100, FC-R8100-P, FC-R7100, FC-RS520Rear Derailleur:
11-speed: RD-R9150, RD-R8050, RD-9070, RD-6870, RD-RX805, RD-RX815, RD-RX81712-speed: RD-R9250**, RD-R8150**, RD-R7150**Cassette:
11-speed: CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11, CS-M8000-11, CS-M7000-11, CS-M5100-1112-speed: CS-R9200-12, CS-R8100-12, CS-R7100-12, CS-R7101-12, CS-HG710-12Chain:
11-speed: CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG50012-speed: CN-M9100, CN-M8100, CN-M7100, CN-M6100Brake Caliper:BR-R9200, BR-R9210, BR-R9100, BR-R9110, BR-9000, BR-9010, BR-7900, BR-R8100, BR-R8110, BR-RS811-R, BR-R8000, BR-R8010, BR-6800, BR-6810, BR-6700, BR-R7000, BR-R7010, BR-5800, BR-5810, BR-5710, BR-5700, BR-4700, BR-4600, BR-R3000, BR-3500, BR-R561, BR-R2000, BR-CX70, BR-CX50, BR-CX77, BR-R517, BR-R317, BR-RS305, BR-R650*, BR-R451*, BR-R450*, BR-R550*Satellite Shifter:SW-R9150, SW-R9160
* with reduced braking force
** Conversion adapter EW-AD305 required
Features:bar end assembly with clamping conereduced drag due to more aerodynamic designnarrower profile to improve ergonomicsdoes without the switchbox of the ST-6871 and is therefore smaller and shorterintuitive gearshift, firm grip when shiftingone button design specifically for Synchro Shiftprogrammable gearingdefault setting, left: front derailleur Synchro Shift, rear derailleur inwardsdefault setting right: front derailleur Synchro Shift, rear derailleur outwardsE-Tube project ensures firmware updatesSLR-EV brake technologyanodized leverTechnology:STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Digital Integrated Intelligence (Di2)
Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work.
Models:2-speed:
Mount:leftManufacturer Number:I-STR8060L
11-speed:

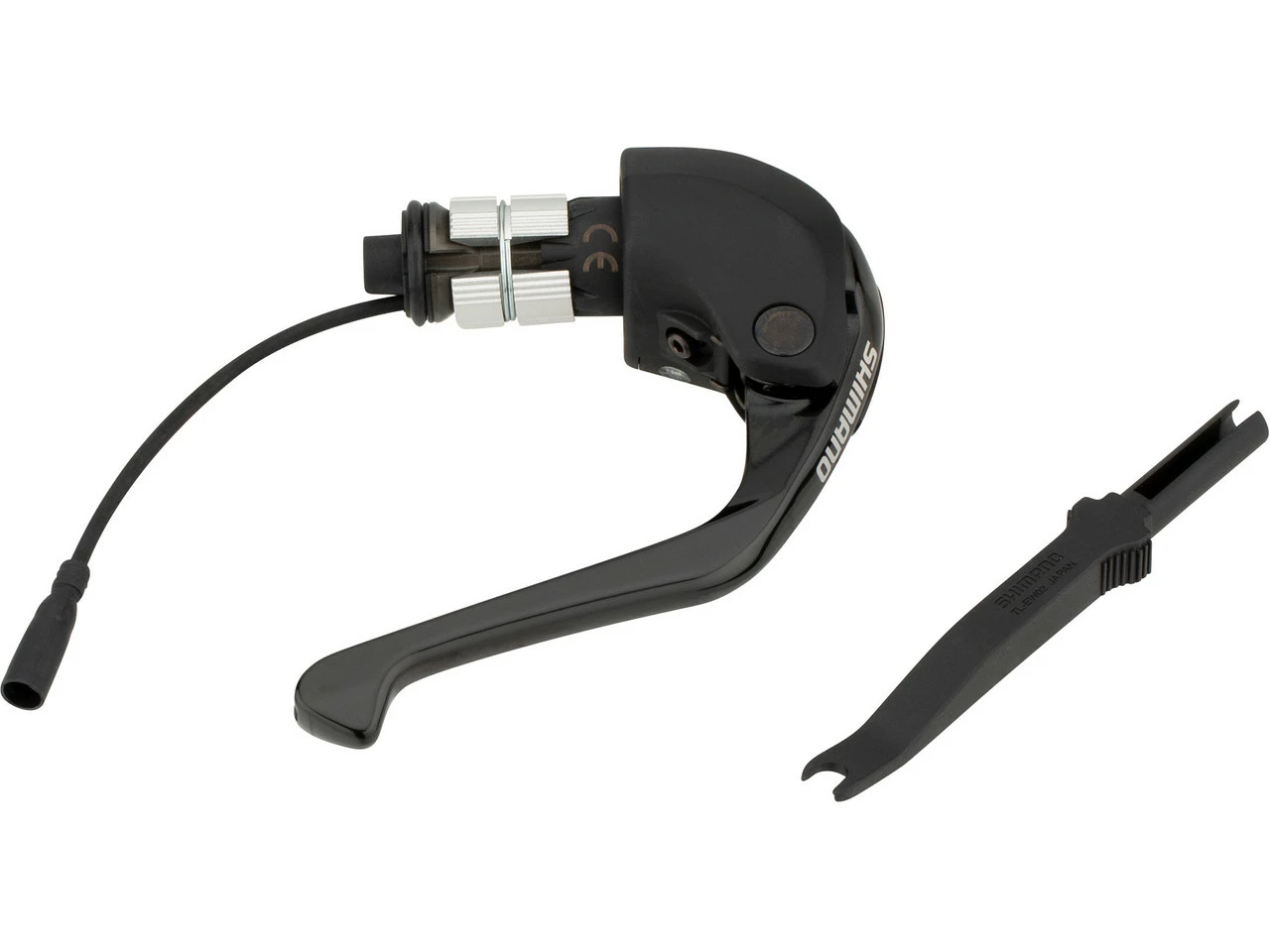

Mount:rightManufacturer Number:I-STR8060RContents:1 x Shimano Ultegra Di2 ST-R8060 shift/brake lever1 x Shimano 105 mm power cable1 x Shimano TL-EW02 plug tool (11-speed version only)
